Spacelabs MCare300 IBP M3200/M3600 Module Patient Monitor Blood Pressure Module

Product Description

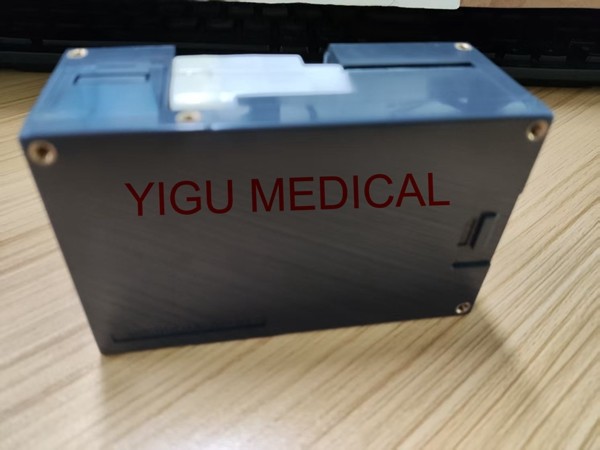

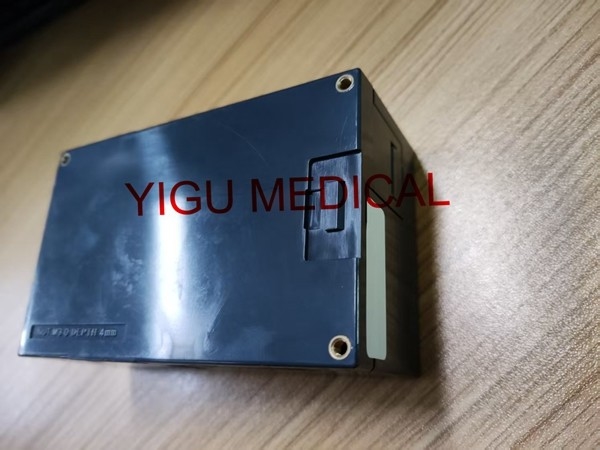

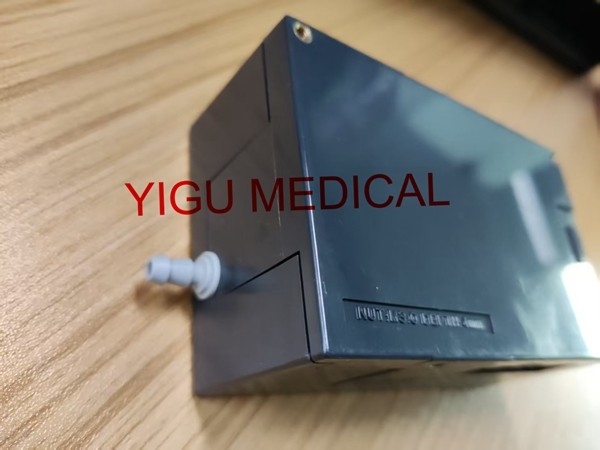

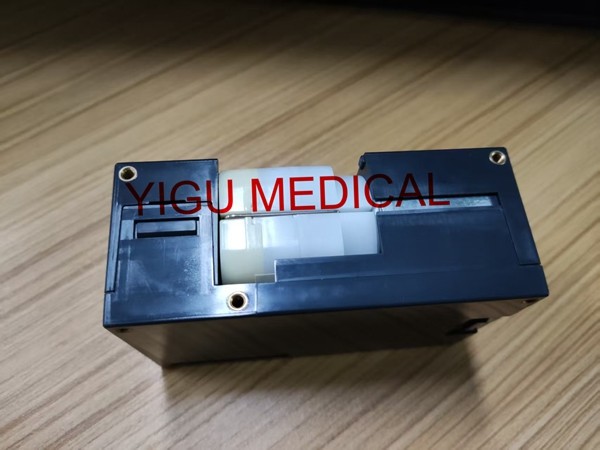

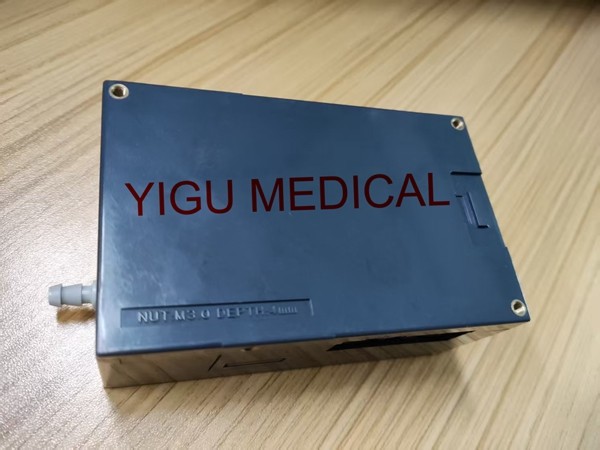

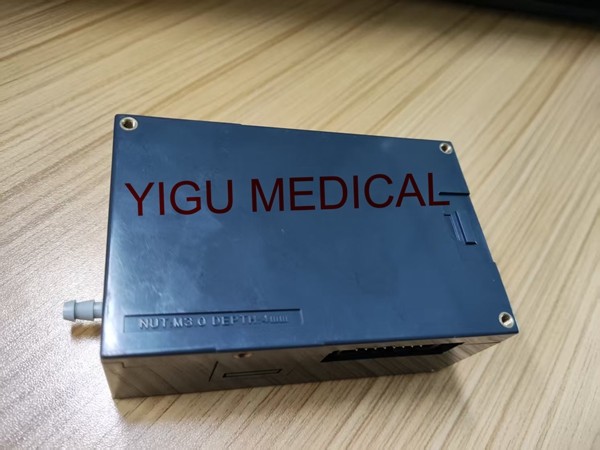

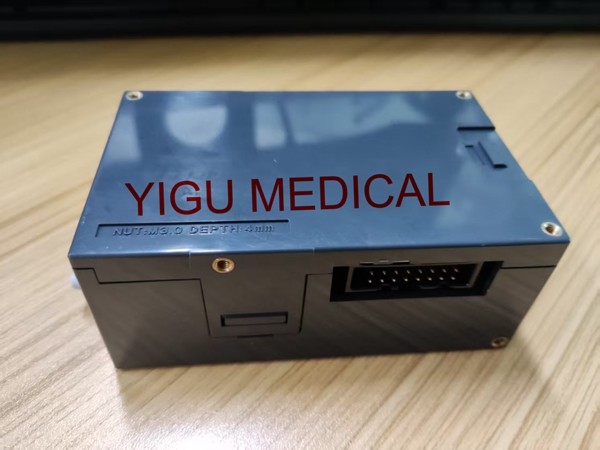

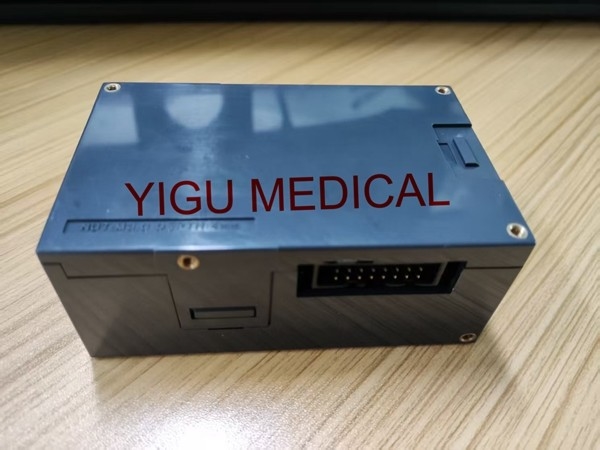

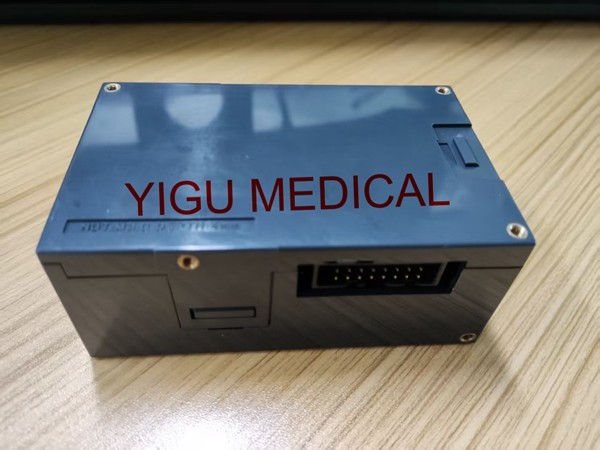

Spacelabs mCare300 IBP M3200/M3600 Module Patient Monitor Blood Pressure Module

Spacelabs mCare300 IBP M3200/M3600 Module** is an **Invasive Blood Pressure (IBP)** monitoring module designed for use with the Spacelabs mCare300 Patient Monitoring System. It accurately and reliably monitors arterial, central venous, pulmonary artery, and other invasive pressures, making it an essential tool for critical care environments.

---

**Main Features of the Spacelabs mCare300 IBP Module (M3200/M3600):**

1. **Invasive Blood Pressure Monitoring**:

- Measures arterial, central venous, pulmonary artery, and other invasive pressures.

- Provides real-time waveforms and values ​​for precise hemodynamic monitoring.

2. **High Accuracy**:

- Ensures reliable, accurate pressure measurements for critical care patients.

3. **User-Friendly Interface**:

- Easy-to-use controls and clear display for quick access to patient data.

- Customizable views to prioritize critical information.

4. **Alarms and Reminders**:
- Configurable alarms alert clinicians to changes in patient condition, ensuring timely intervention.

5. **Compact and Modular Design**:
- Designed to integrate seamlessly with the Spacelabs mCare300 monitoring system.
- Modular design allows for easy expansion and customization of the monitoring system.

6. **Data Integration**:
- Supports connectivity with Hospital Information Systems (HIS) and Electronic Medical Records (EMR) for seamless data sharing and documentation.

---

**Applications:**
- **Critical Care**: Continuous monitoring of hemodynamic parameters for ICU patients.
- **Operating Room**: Real-time monitoring during surgery, especially for patients requiring precise blood pressure management.
- **Emergency Department**: Rapid assessment and monitoring of unstable patients.
- **Patient Transport**: Reliable monitoring during intra-hospital transport.

---

**How ​​to Use the IBP Module:**

1. **Installation**:
- Connect the IBP module to the Spacelabs mCare300 monitor using the appropriate interface.
- Ensure the module is securely mounted and powered on.

2. **Setup**:
- Connect the IBP sensor to the module using the provided cable.
- Zero the sensor to ensure accurate pressure measurements.

3. **Monitoring**:
- Place an arterial line or other invasive pressure catheter into the patient.
- Observe the real-time waveform and values ​​on the monitor.
- Adjust settings as needed (e.g., scale, alarms).

---

**Troubleshooting Common Problems**

1. **No signal or waveform**:
- Check the connections between the sensor, module, and monitor.
- Ensure the sensor is properly zeroed and calibrated.

2. **Inaccurate reading**:
- Verify that the sensor is at the correct level (e.g., venous static pressure axis).
- Re-zero the sensor and check for bubbles in the line.

3. **Alarm Issues**:
- Verify that the alarm settings are configured correctly.
- Check for loose connections or faulty components.

---

**Replacement Parts and Accessories**:
- **IBP Sensor**: Ensure compatibility with the M3200/M3600 module.
- **Cables and Connectors**: Replacement cables to connect the sensor to the module.

- **Mounting Hardware**: Brackets or brackets to secure the module.
