GE B650 DC Power Supply Board For Patient Monitor Power Supply M1082251-8

Product Description

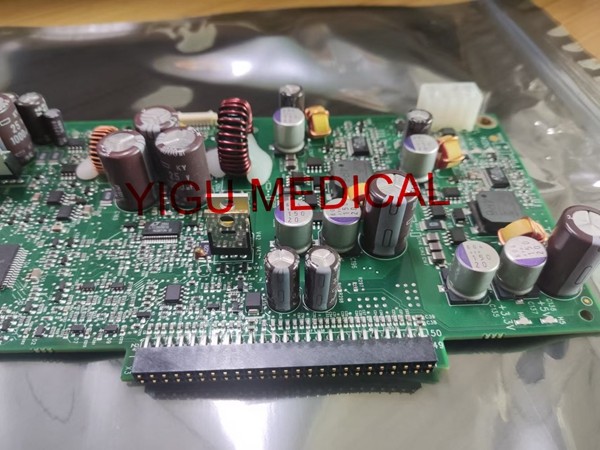

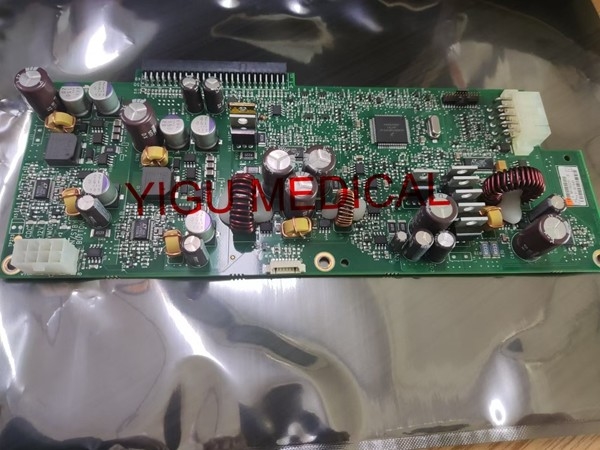

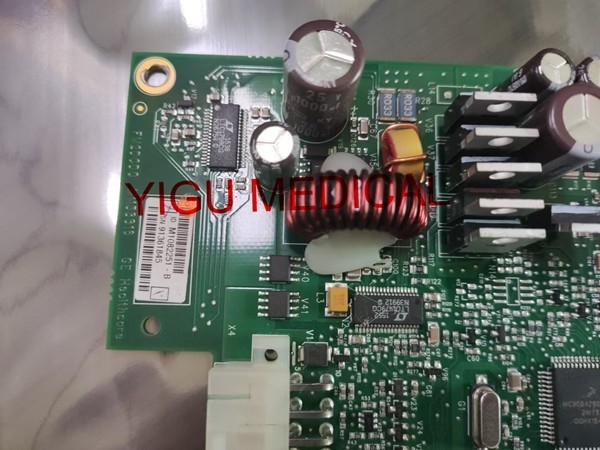

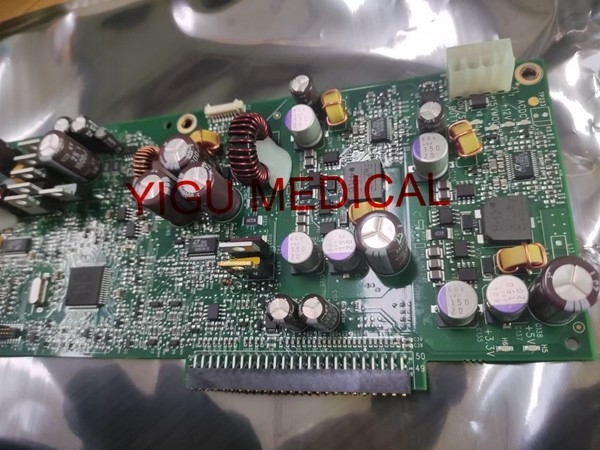

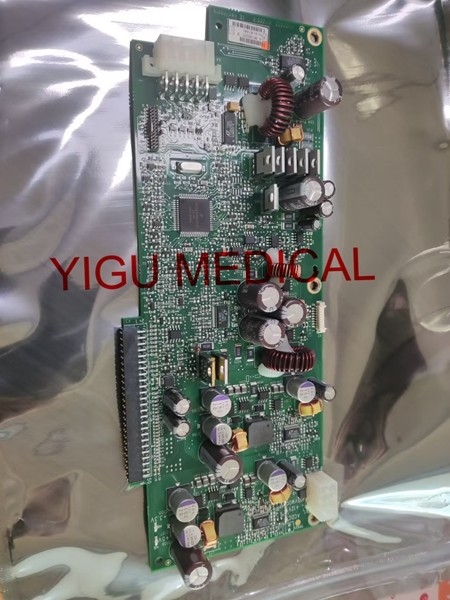

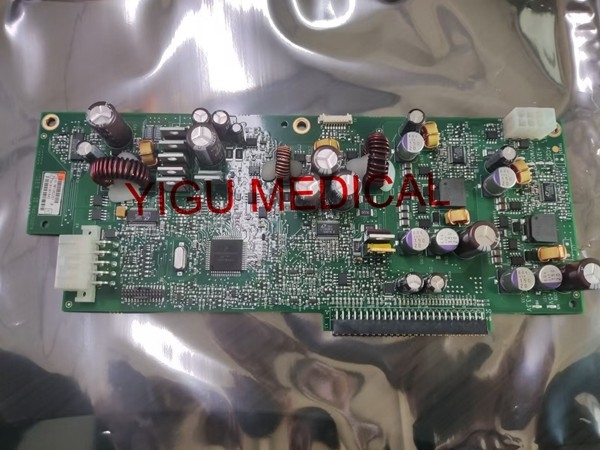

GE B650 DC Power supply board for Patient Monitor Power Supply M1082251-8

The GE B650 DC Power Supply Board is a critical component in various electronic systems, providing stable power to ensure proper functionality. Here is a brief introduction to the GE B650 DC Power Supply Board:

Overview:

1. The GE B650 DC Power Supply Board is designed to convert alternating current (AC) input into direct current (DC) output at a specific voltage and current rating. It is commonly used in industrial applications, telecommunications equipment, medical devices, and other electronic systems that require a reliable power source.
2. Key Features:
3. Voltage Regulation: The GE B650 DC Power Supply Board offers precise voltage regulation to ensure consistent power delivery to connected devices.
4. Current Protection: It includes built-in current protection mechanisms to prevent damage to the board and connected equipment in case of overcurrent situations.
5. Efficiency: The board is designed for high efficiency, minimizing power loss during the conversion process.
6. Compact Design: With a compact form factor, the GE B650 DC Power Supply Board can be easily integrated into various electronic systems.
7. Reliability: GE is known for producing high-quality electronic components, ensuring the reliability and longevity of the B650 DC Power Supply Board.
8. Applications:

• Industrial Automation
• Telecommunications Systems
• Medical Equipment
• Data Centers
• Test and Measurement Instruments
• Specifications (Example):
• Input Voltage: 100-240V AC
• Output Voltage: 24V DC
• Output Current: 10A
• Efficiency: 90%
• Dimensions: 5" x 3" x 1"

Common failure modes of a power supply board like the GE B650 DC Power Supply Board can vary depending on factors like usage conditions, environmental factors, and component quality. Here are some typical failure modes that may occur:

• Overheating: Overheating is a common issue that can lead to the failure of power supply boards. Dust accumulation, poor ventilation, or running the board at or beyond its maximum rated capacity can cause overheating.
• Component Failure: Components such as capacitors, diodes, transistors, and voltage regulators can fail over time due to factors like voltage spikes, overloading, or aging. These failures can cause the power supply to malfunction or stop working altogether.
• Short Circuits: Short circuits within the power supply board can occur due to component failures, improper handling, or manufacturing defects. Short circuits can lead to damage to the board and connected devices.
• Input Voltage Spikes: Sudden spikes or fluctuations in the input voltage can damage components within the power supply board, leading to failure. This can happen due to power surges, lightning strikes, or faulty electrical wiring.
• Electrolytic Capacitor Degradation: Electrolytic capacitors have a limited lifespan and can degrade over time, especially if they are exposed to high temperatures or operating beyond their specified ratings. Capacitor failure can lead to power supply instability or failure.
• Poor Solder Joints: Weak or poor solder joints can develop over time due to thermal cycling and mechanical stress. These joints can lead to intermittent connections or open circuits, causing the power supply board to fail.
• Voltage Regulation Issues: If the voltage regulation circuitry within the power supply board malfunctions, it can result in unstable output voltages, which may cause connected devices to malfunction or fail.
• Environmental Factors: Exposure to moisture, dust, or extreme temperatures can accelerate the degradation of components on the power supply board, leading to premature failure.
